wheels&castors
KATALOG KODU | THREAD TYPE
İPLİK TÜRÜ TEKERLEKLER
Açıklama
İplik türü tekerlekler.
Teknik Çizim
Uygulama

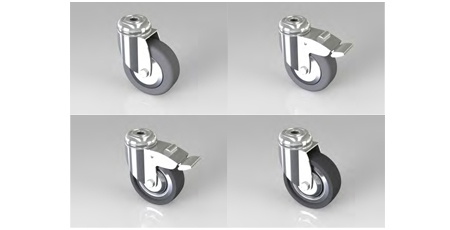

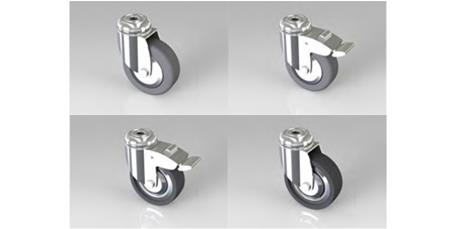

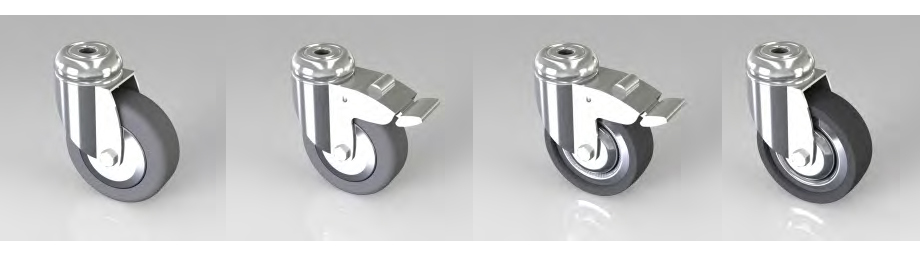

THREAD TYPE
ITEM HEIGHT DIAMETER DYNAMIC LOAD STATIC LOAD RIGID SWIVEL BRAKE ESD
TT-75-S 100mm 75mm 75kg 150kg   Checked
TT-75-S-E 100mm 75mm 55kg 110kg   Checked   Checked
TT-75-S-B 100mm 75mm 75kg 150kg   Checked Checked
TT-75-S-B-E 100mm 75mm 55kg 110kg   Checked Checked Checked
TT-100-S 135mm 100mm 100kg 200kg   Checked
TT-100-S-E 135mm 100mm 80kg 160kg   Checked   Checked
TT-100-S-B 135mm 100mm 100kg 200kg   Checked Checked
TT-100-S-B-E 135mm 100mm 80kg 160kg   Checked Checked Checked
High precision cone ball-bearing









THREAD TYPE(SPECIAL)
ITEM HEIGHT DIAMETER DYNAMIC LOAD STATIC LOAD DESCRIPTION ESD
TT-100-S-R 135mm 100mm 100kg 200kg directional lock: from a swivelling
TT-100-S-R-E 135mm 100mm 80kg 160kg castor to one with a fixed direction Checked
TT-100-DL 135mm 100mm 100kg 200kg double lock
TT-100-DL-E 135mm 100mm 80kg 160kg Checked
High precision cone ball-bearing
